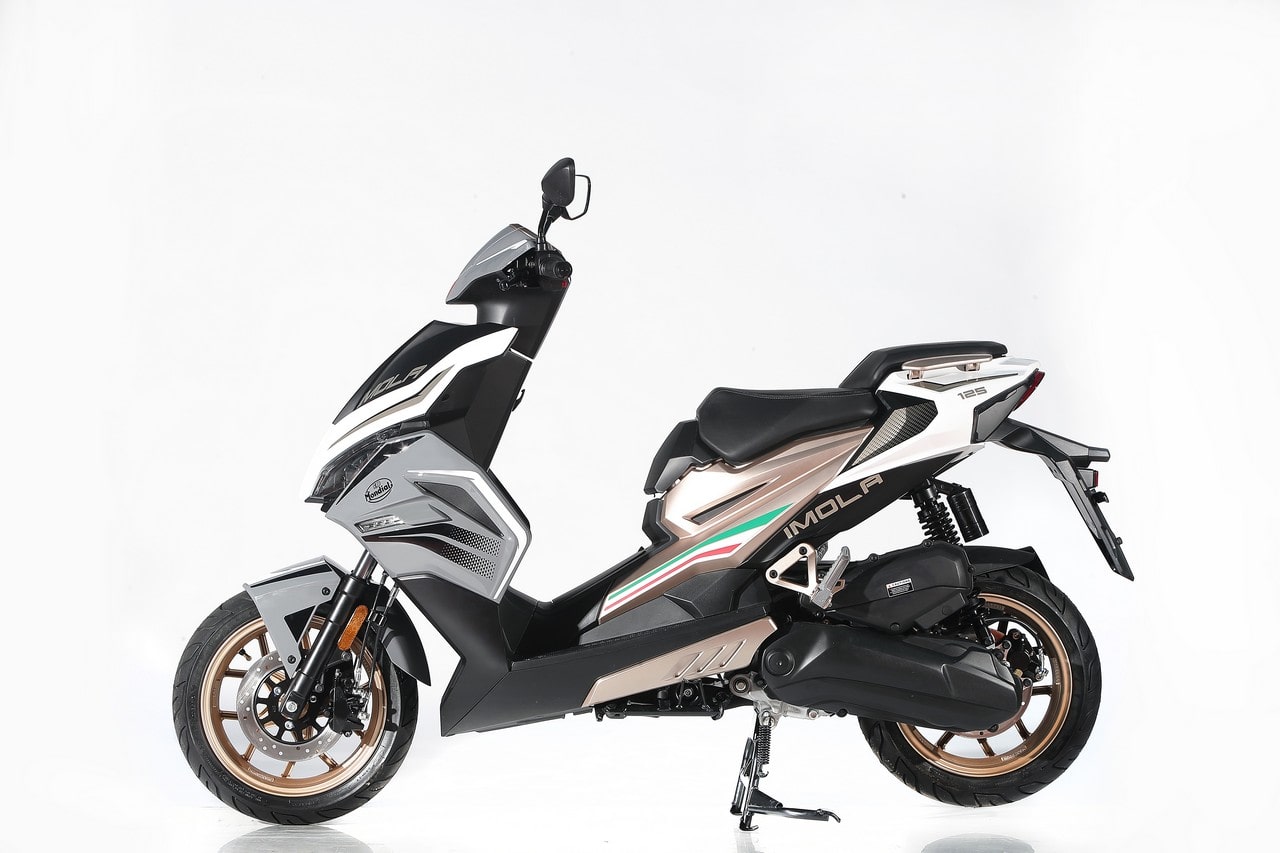

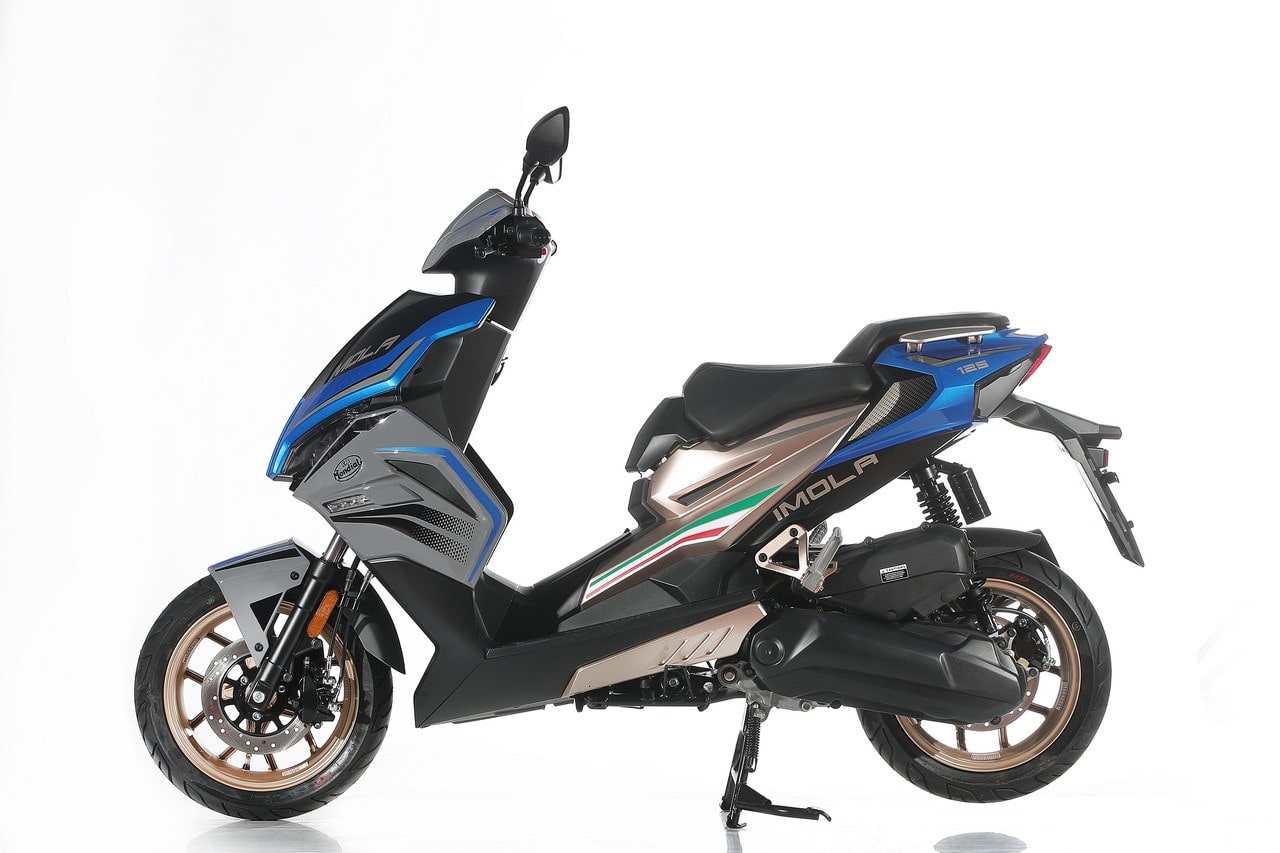

ENGINE | IMOLA 125 |
Type | Single cylinder, 4 stroke |
Displacement | 125 cm3 |
Bore x Stroke | N/A |
Compression ratio | 10 : 1 |
Max Power | 9 HP |
Max Torque | 9.1 Nm at 6000 rpm |
Lubrication | Wet sump |
Cooling | Air-cooled |
Intake system | EFI |

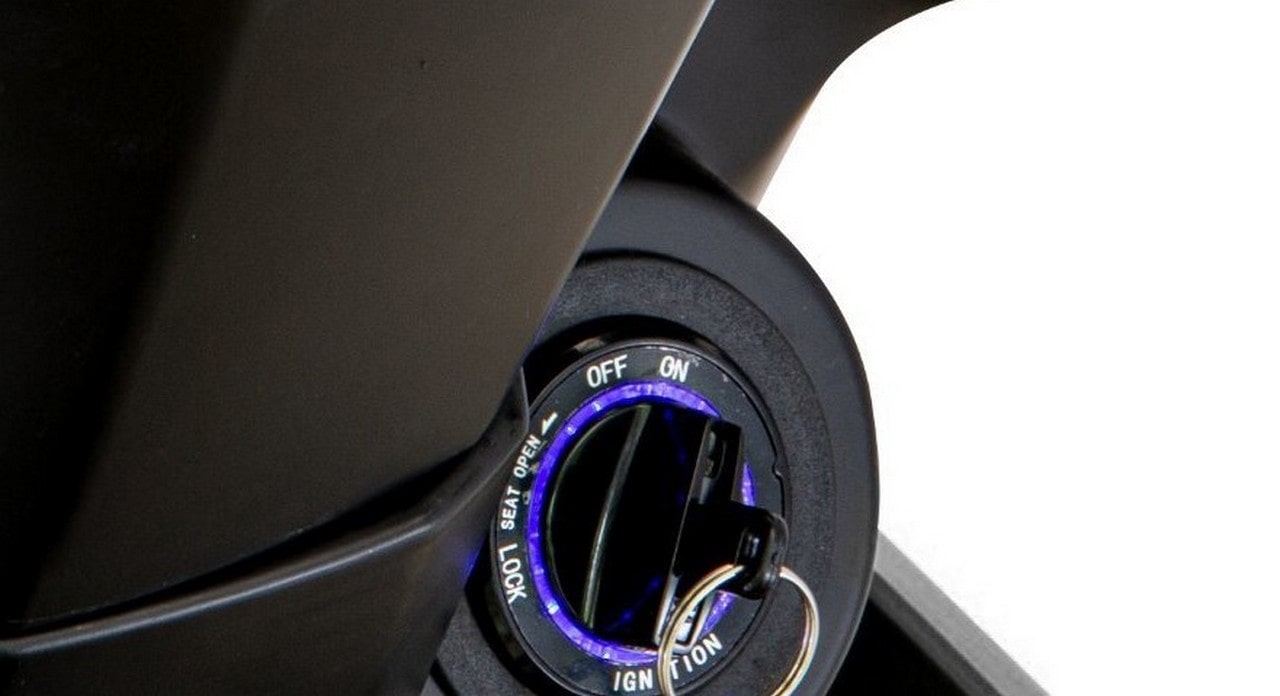

Starting system | Electric starter |
Transmission | Automatic |
Fuel tank | 5 L |
FRAME BODY | IMOLA 125 |
Lenght | 1880 mm |
Width | 685 mm |
Height | 1160 mm |
Wheelbase | 1340 mm |
Ground clearance | N/A |

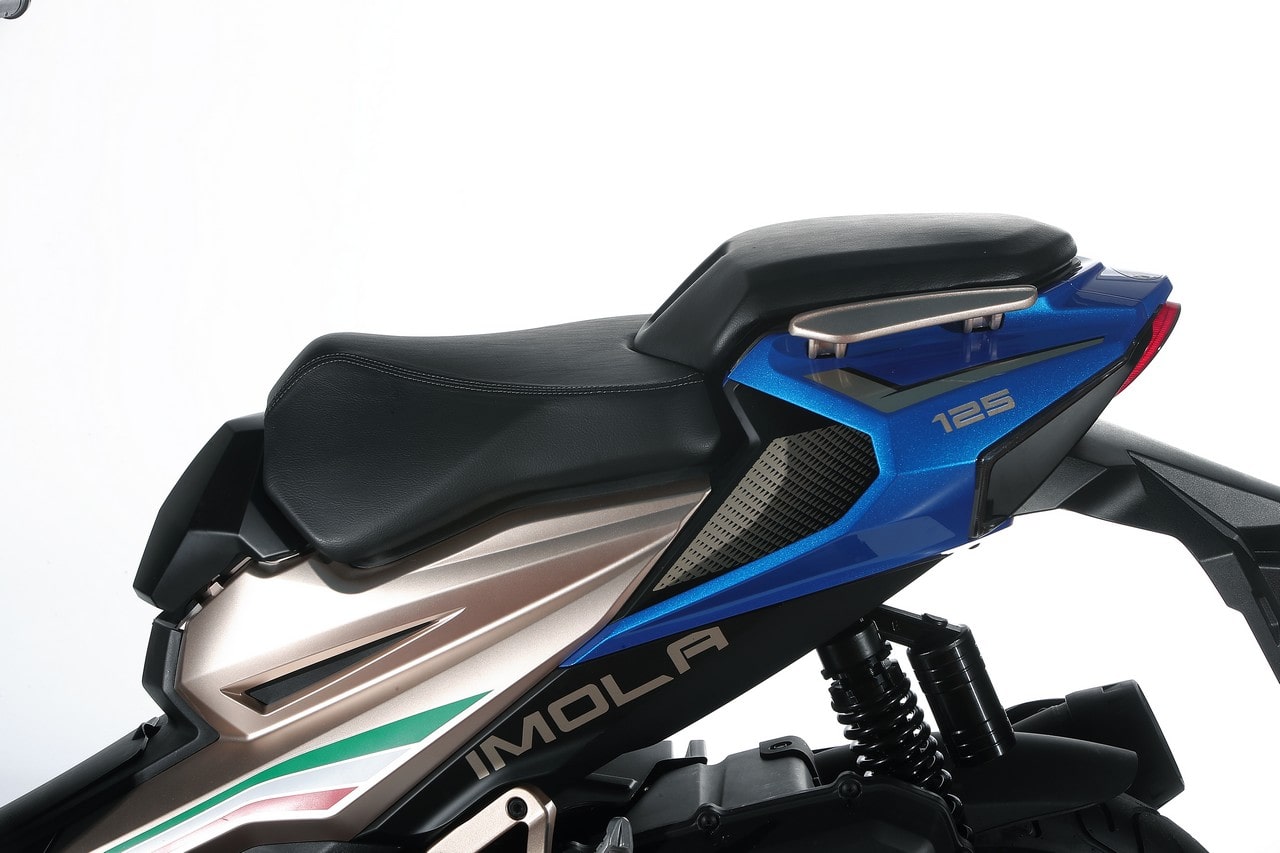

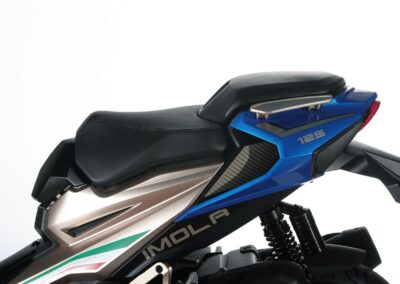

Seat height | 780 mm |
Front suspension | 29 mm inverted fork |

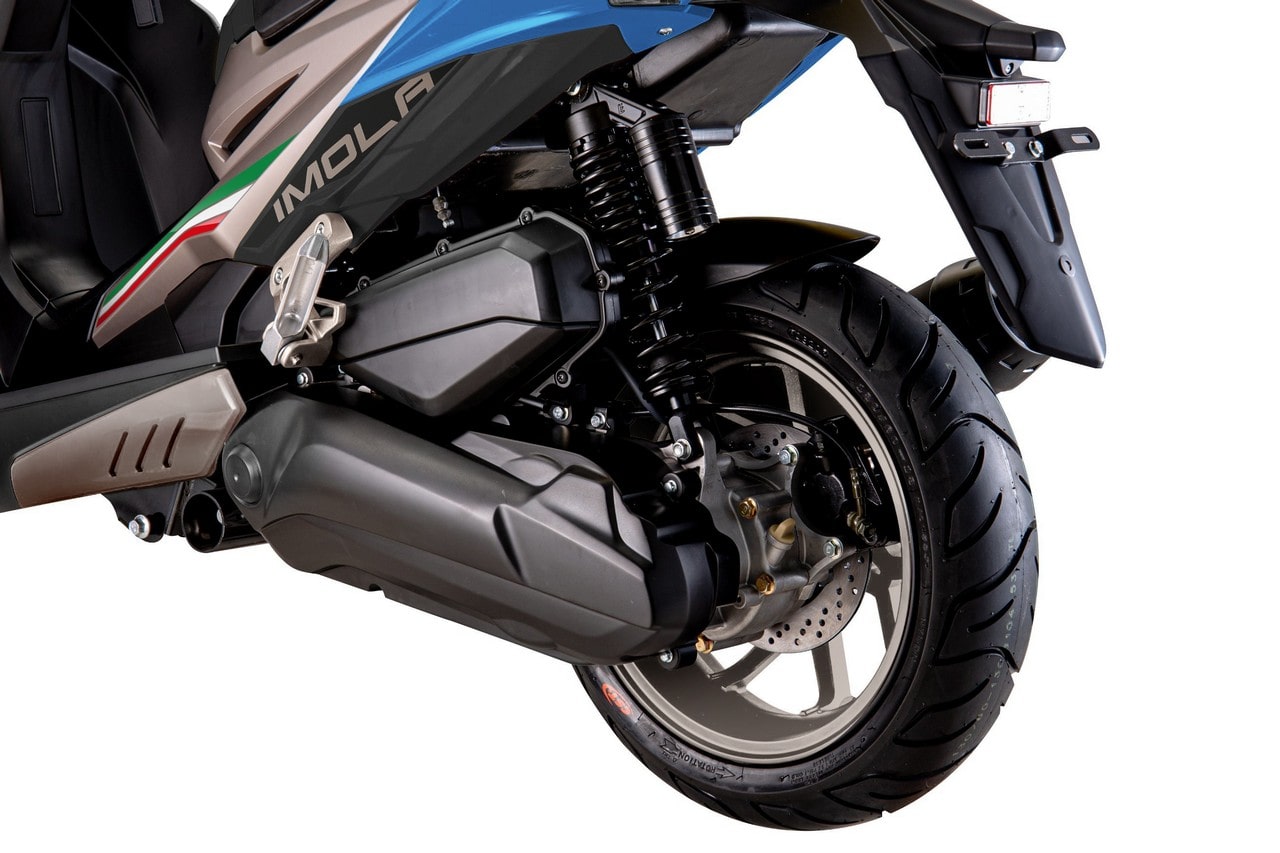

Rear suspension | Oil pneumatic monoshock |
Dry weight | 116 kg |
Max load | 2 persons |

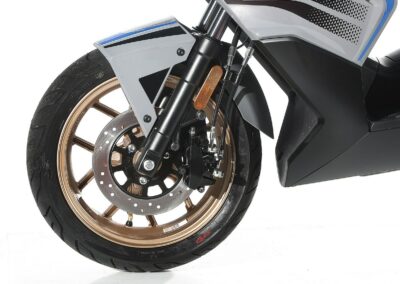

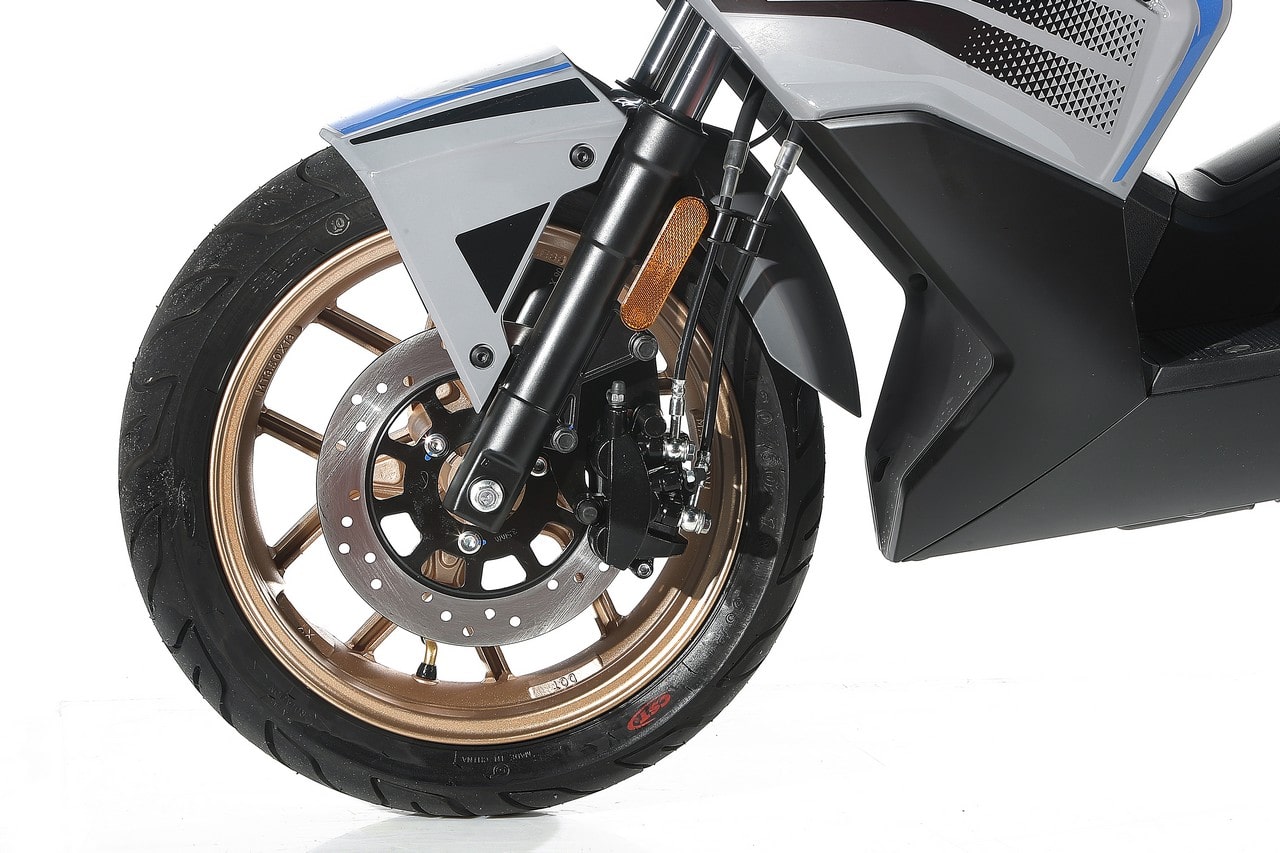

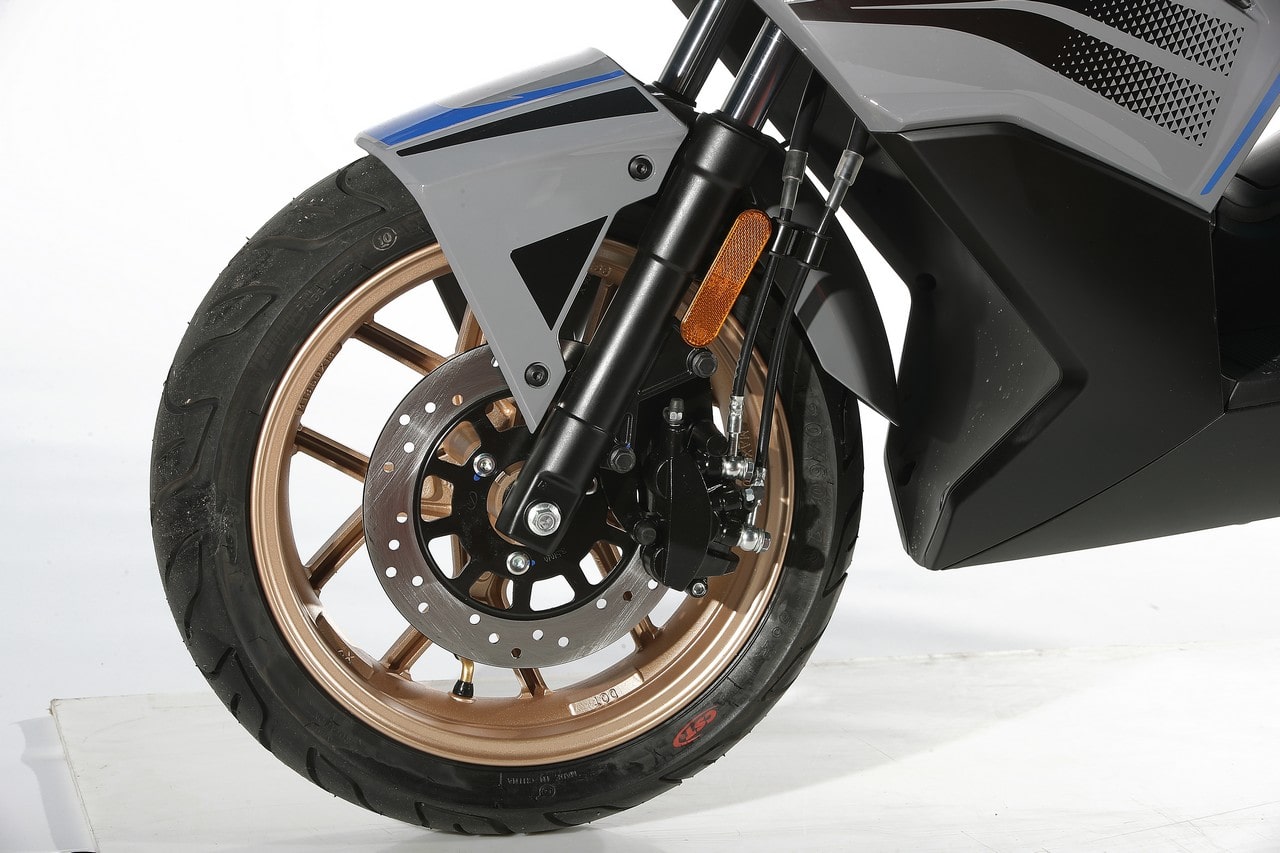

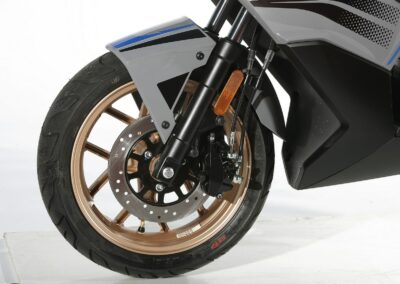

Front brake | Disc brake 220 mm with 2 pistons caliper |
Rear brake | Disc brake 220mm with CBS |
Front wheel | 13” |
Rear wheel | 13” |
Front tyre | 120/60 x 13” |
Rear tyre | 130/60 x 13” |

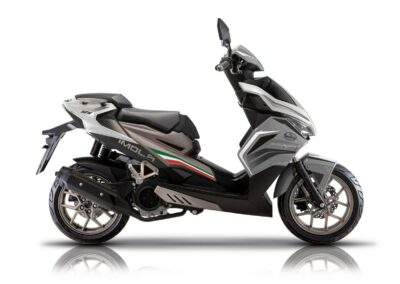

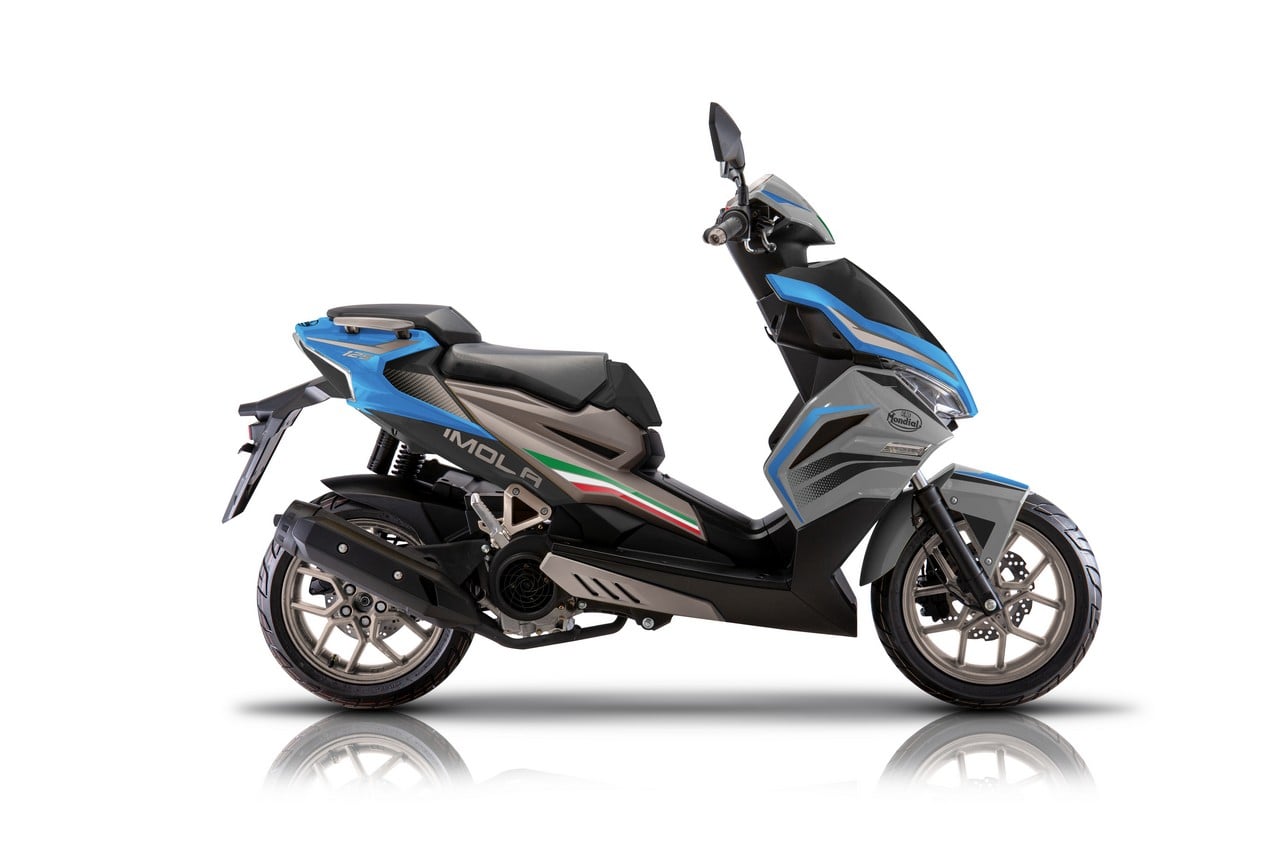

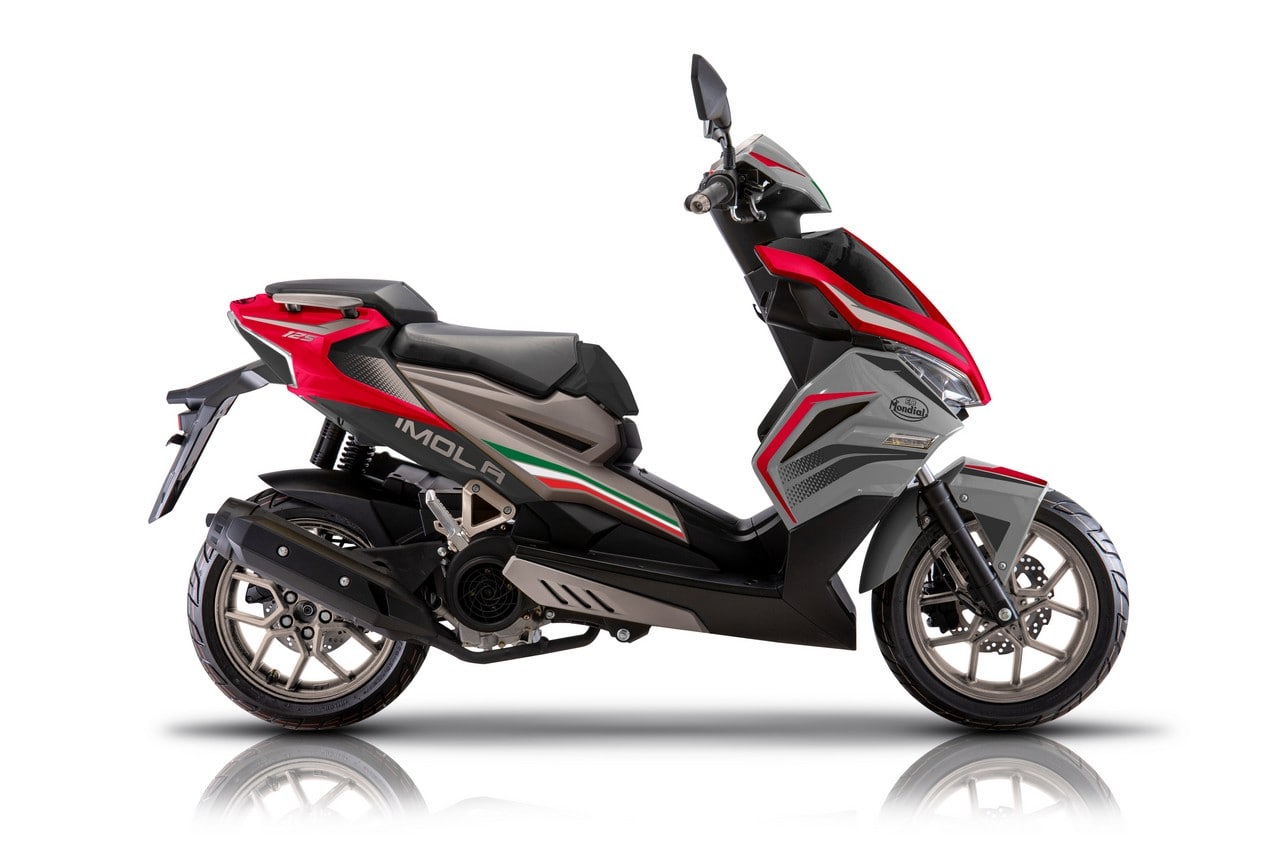

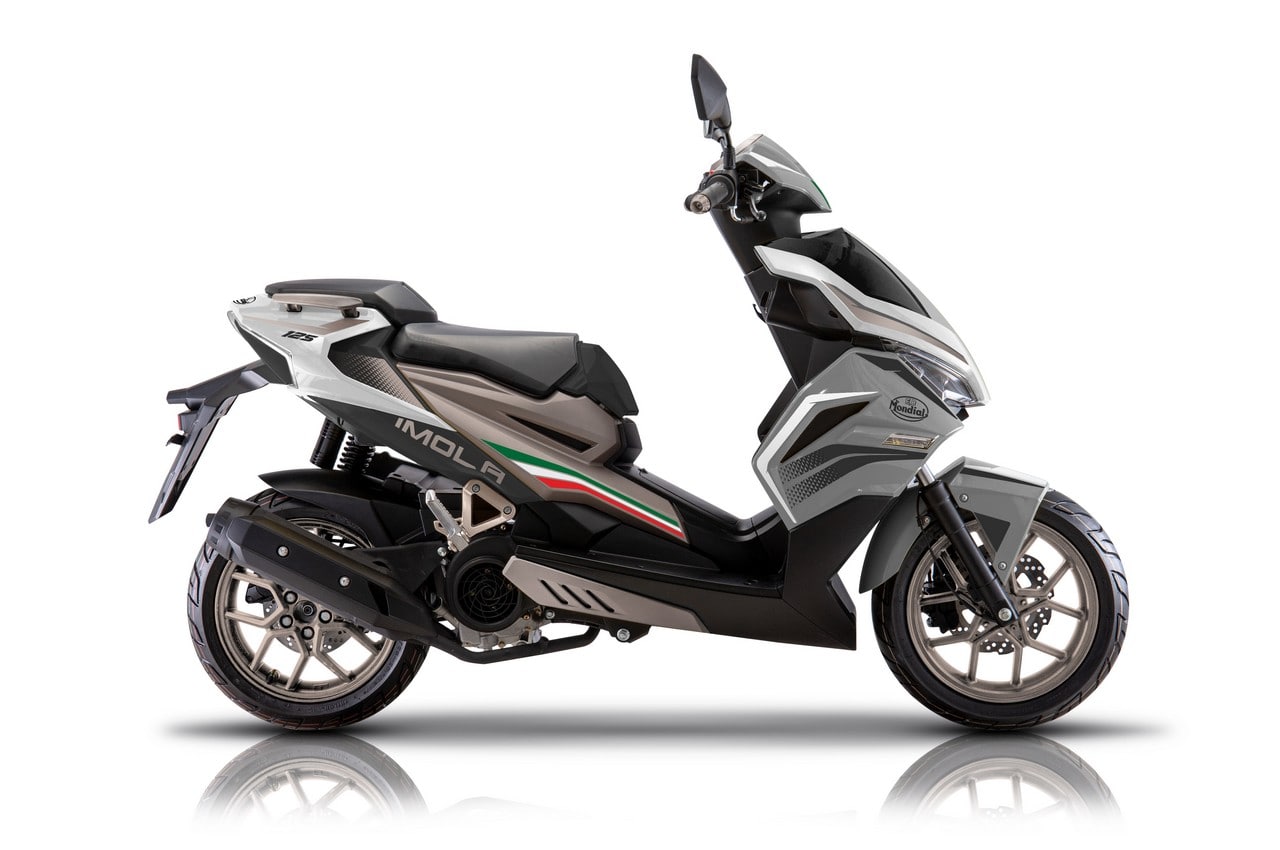

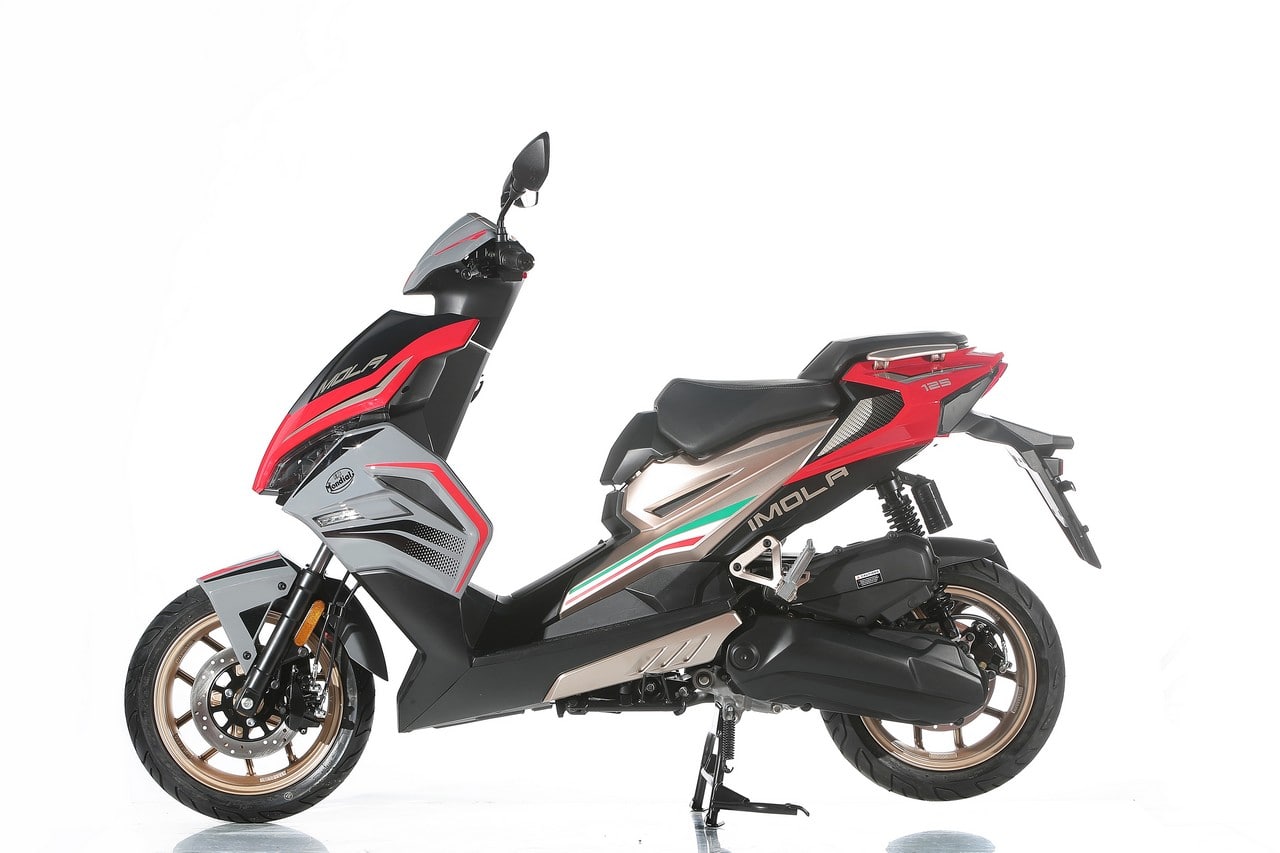

Colors | White / Red / Blue |
