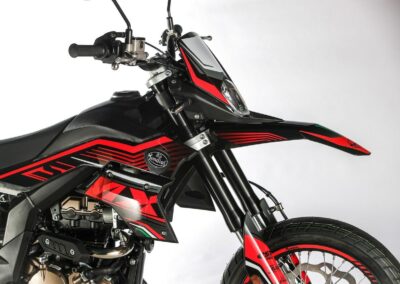

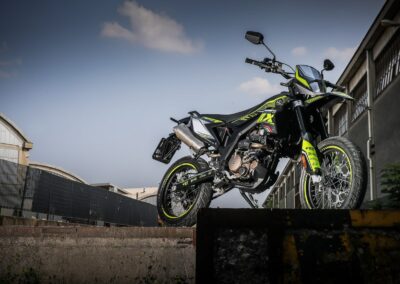

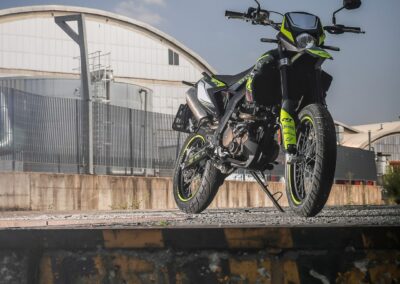

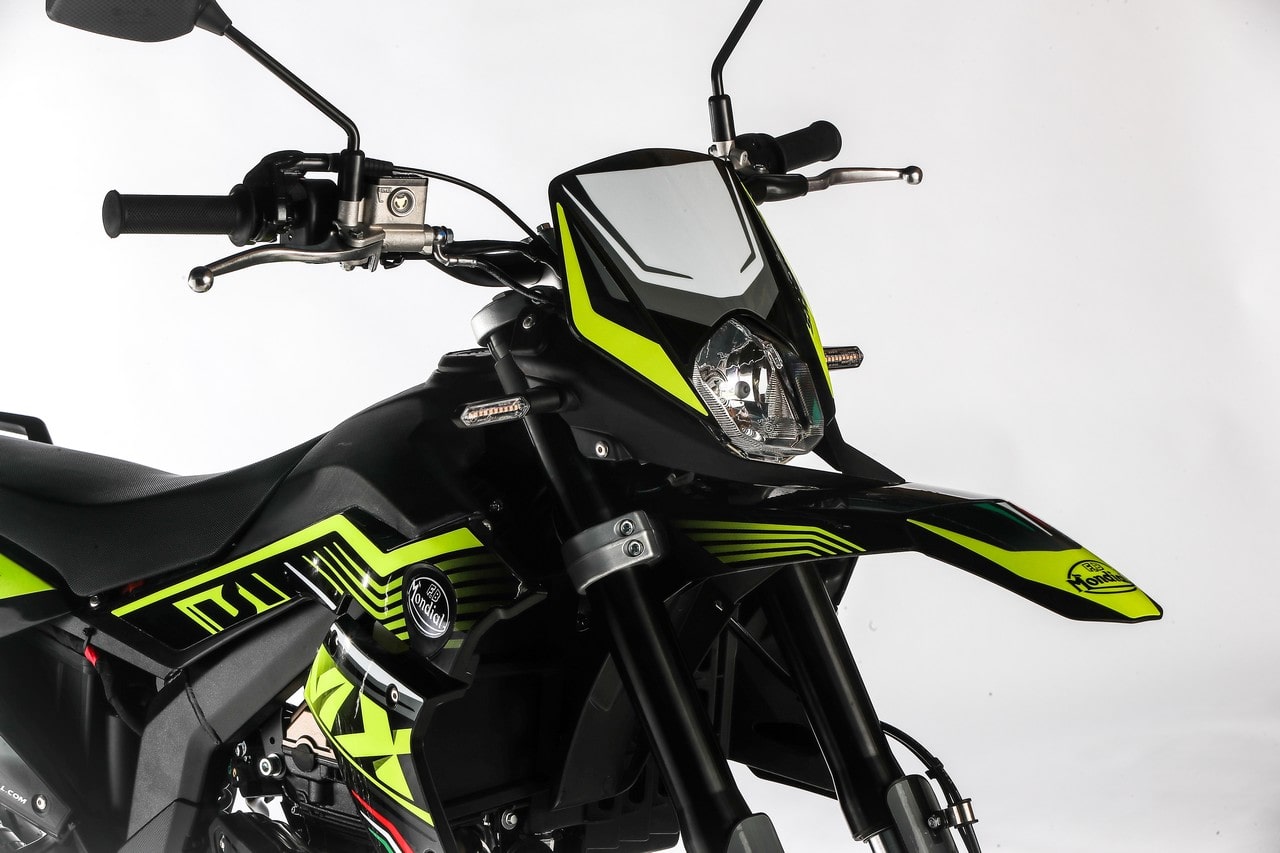

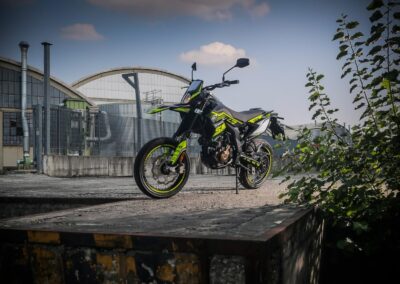

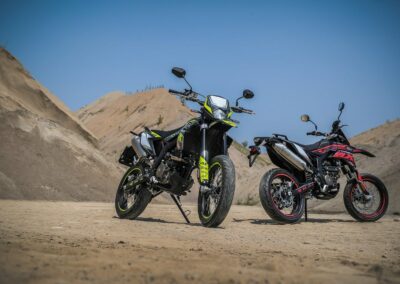

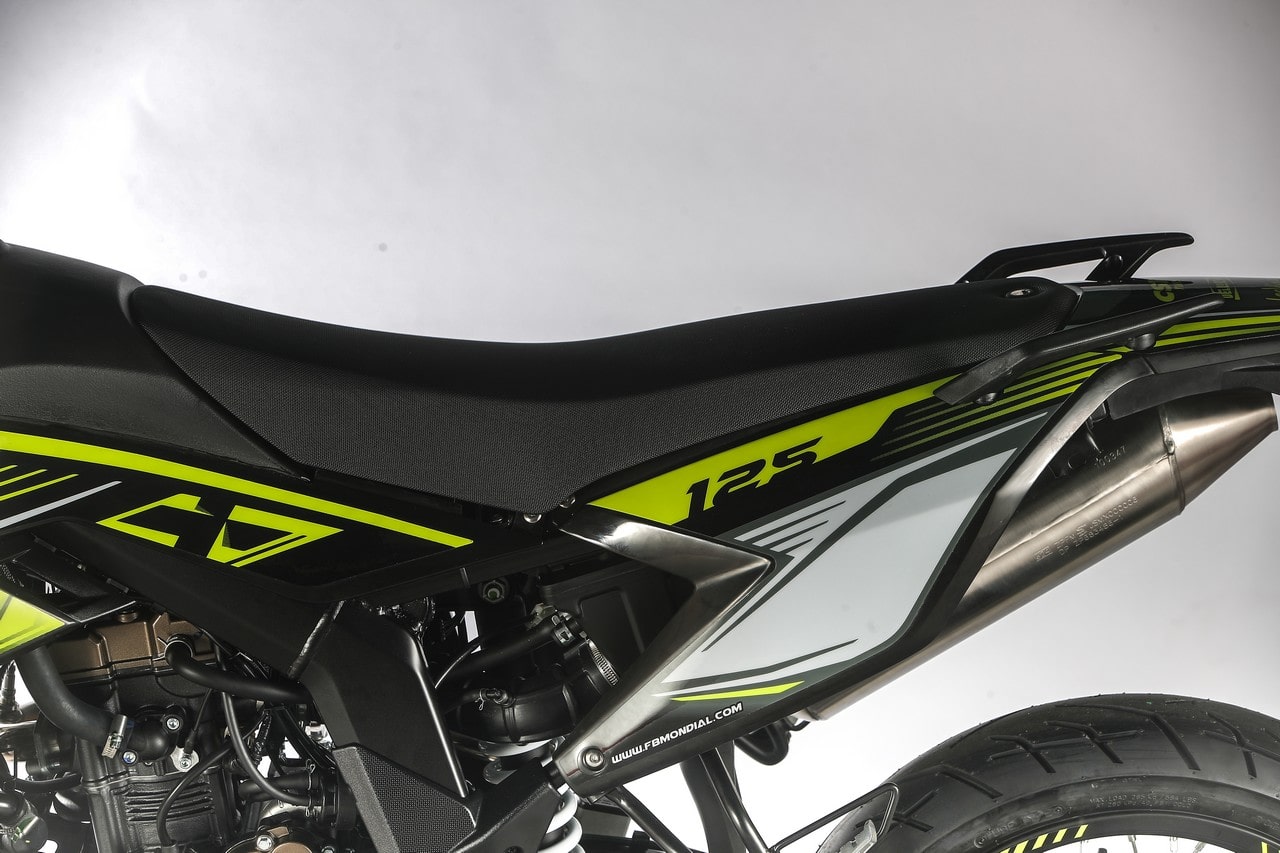

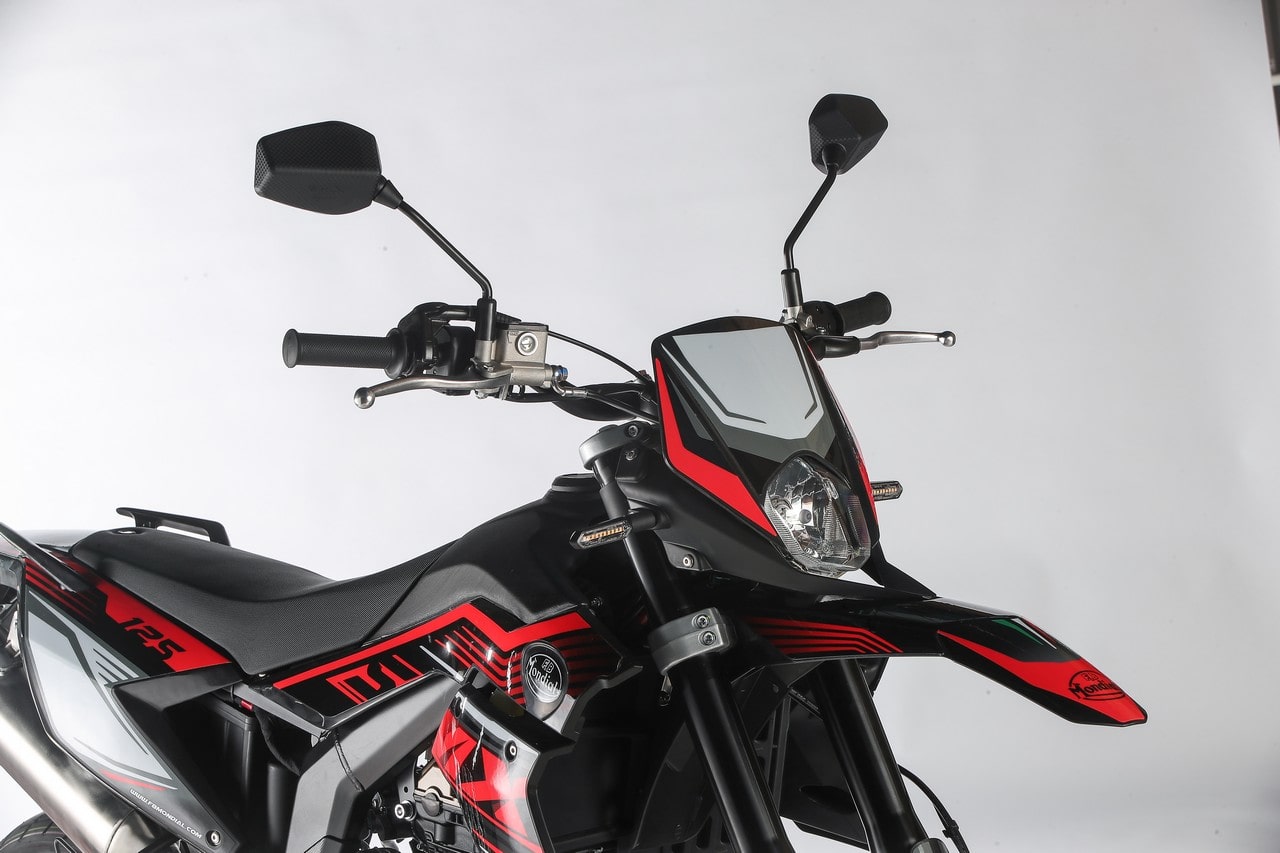

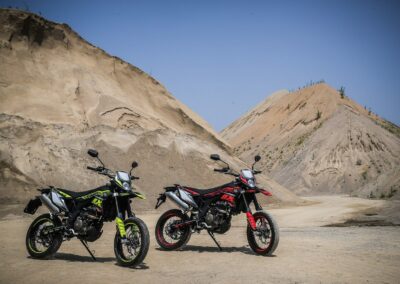

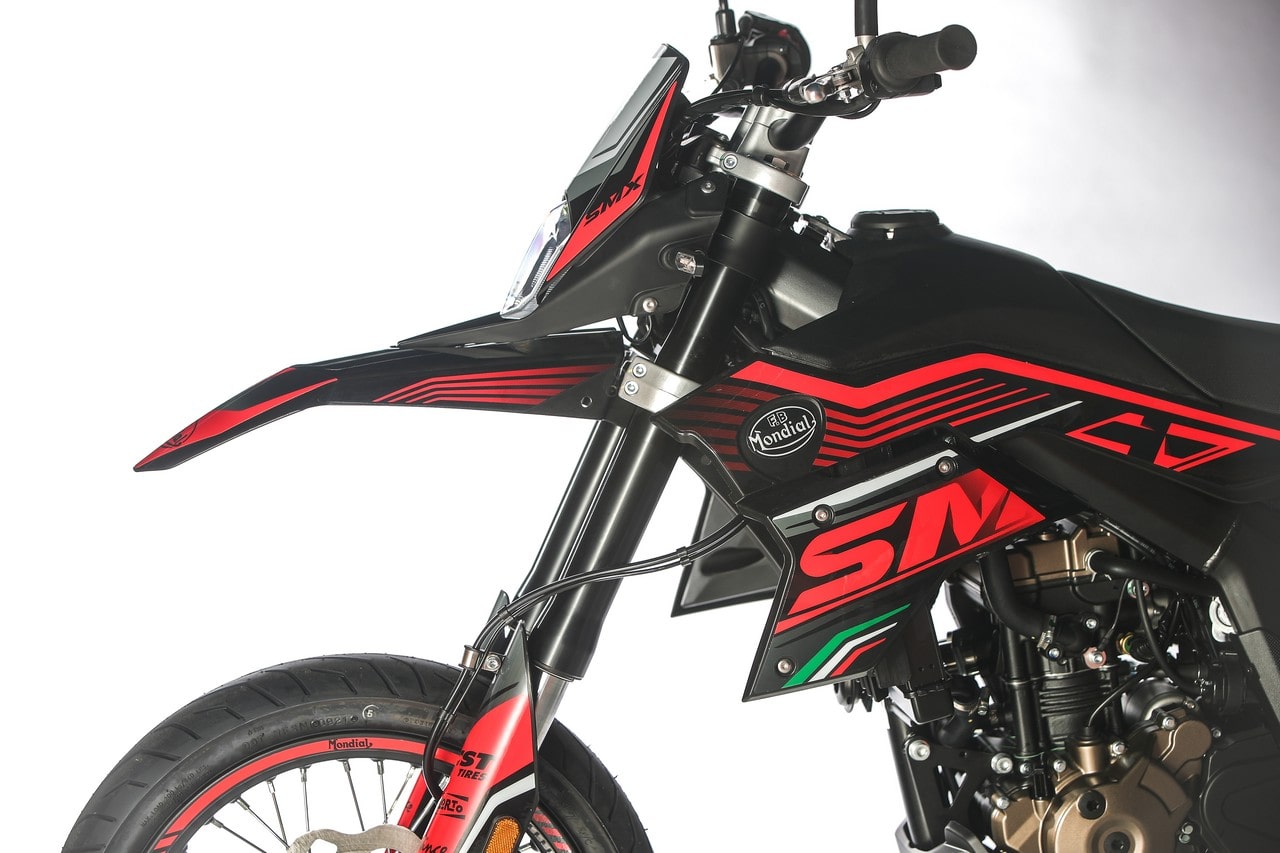

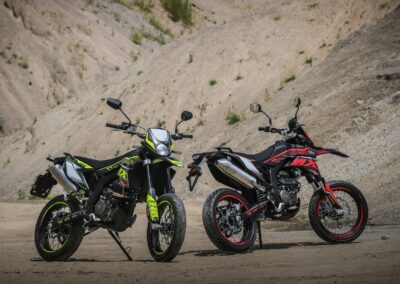

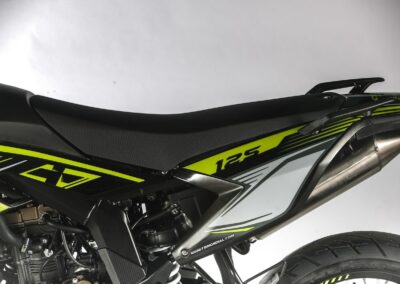

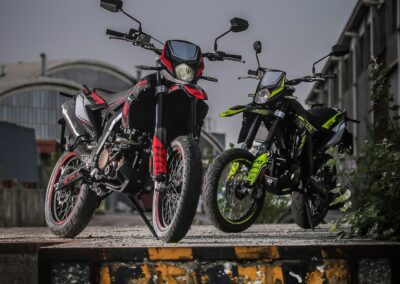

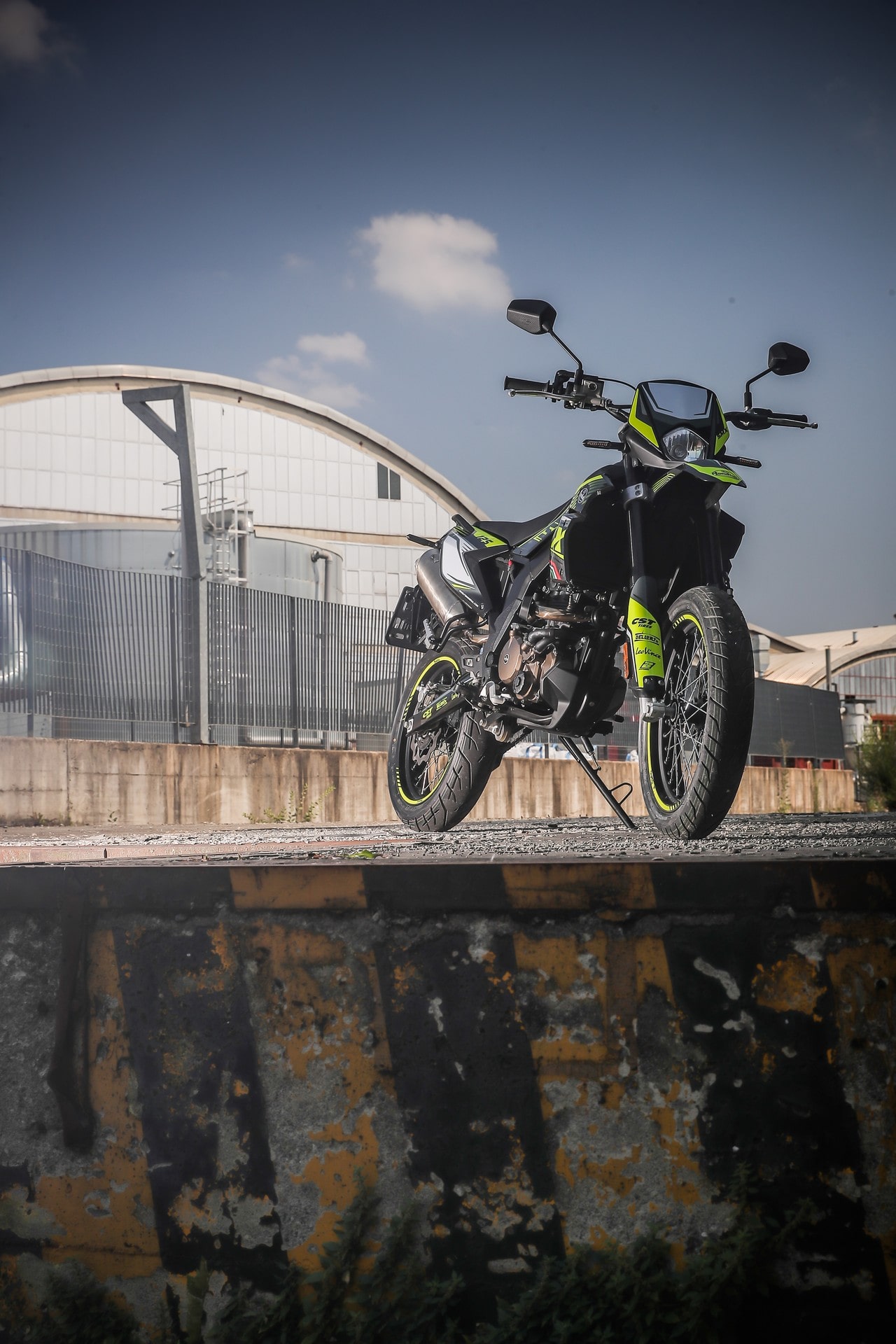

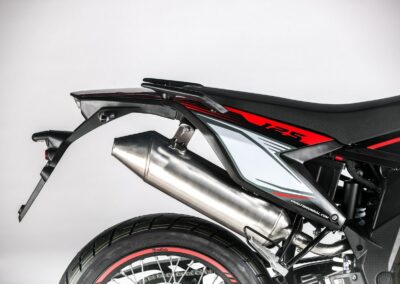

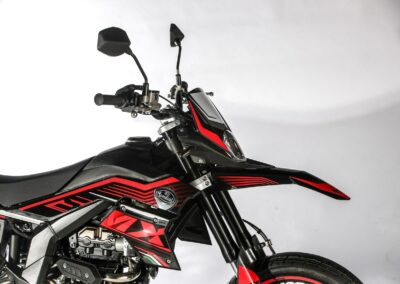

FBMONDIAL SMX MOTARD 125

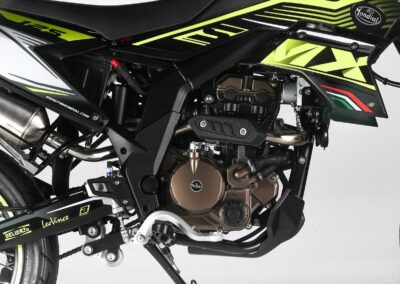

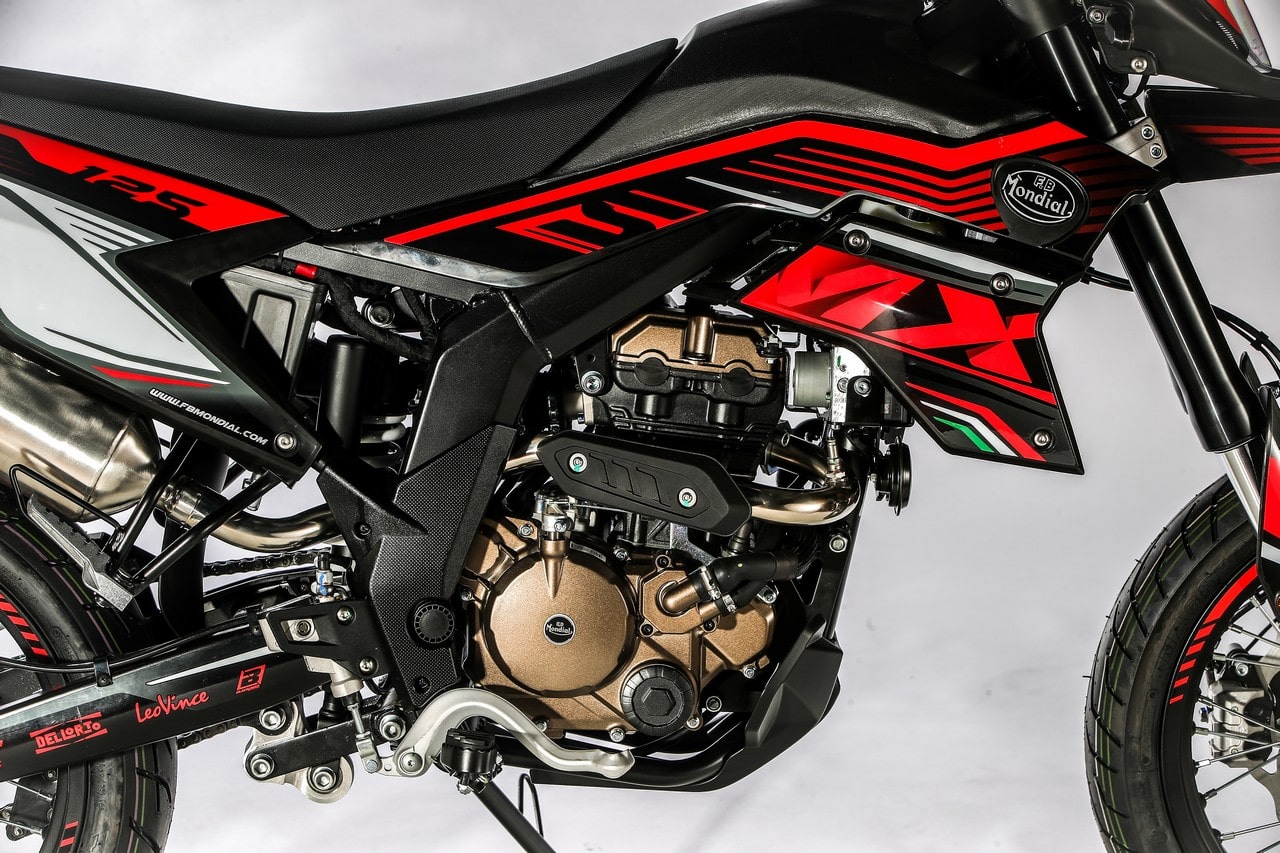

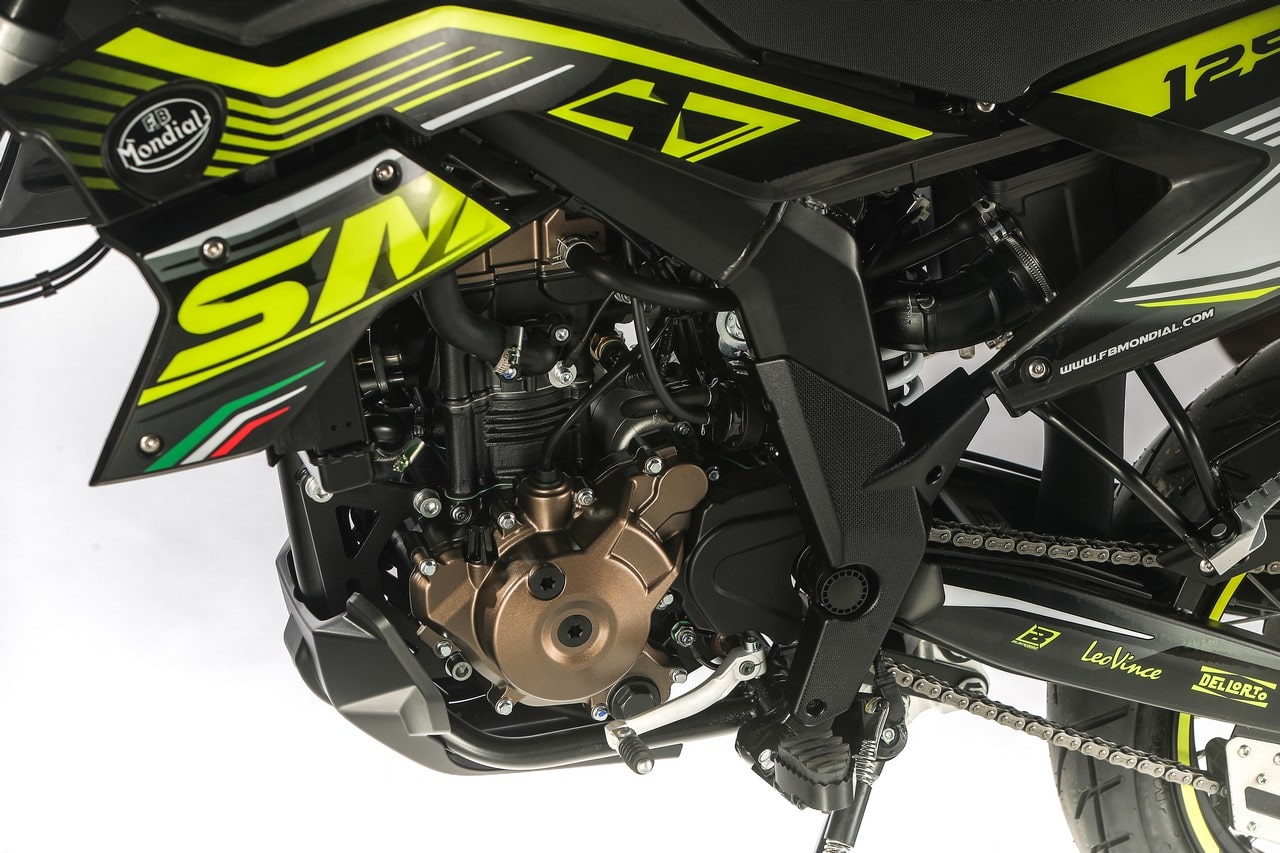

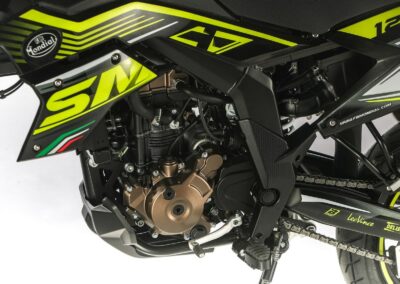

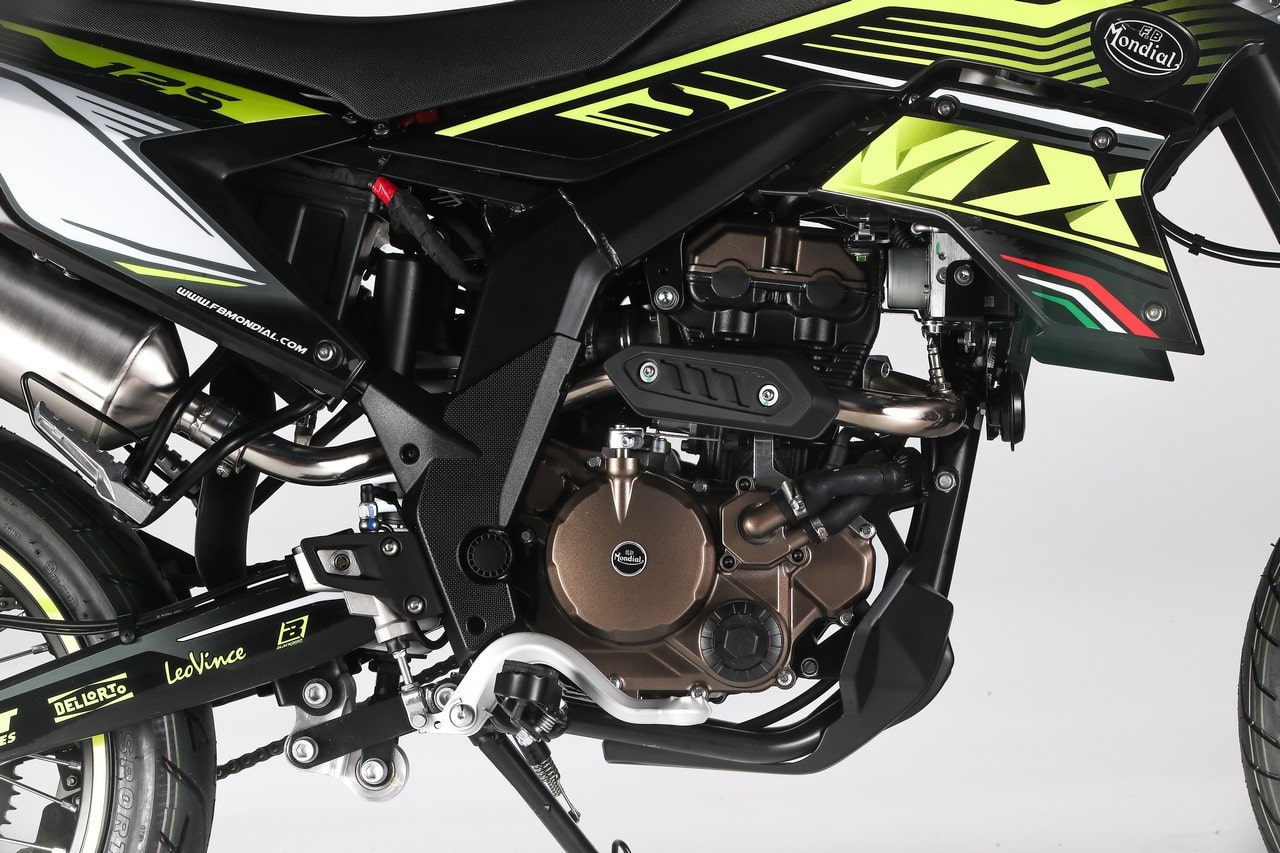

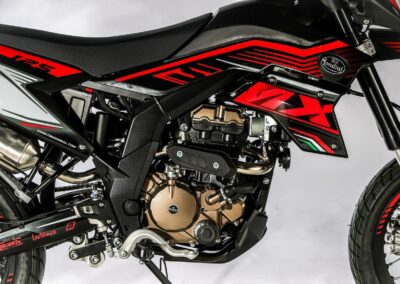

ENGINE HPS 125
Type Single cylinder, 4 stroke, DOHC, 4 valves
Displacement 124 cm3
Bore x Stroke    58 x 47
Compression ratio   12,6 : 1
Max Power 15 HP at 10750 rpm
Max Torque 12,3 Nm at 8000 rpm
Lubrication Wet sump
Cooling Liquid
Intake system EFI
Starting system  Electric starter
Transmission 6 speed

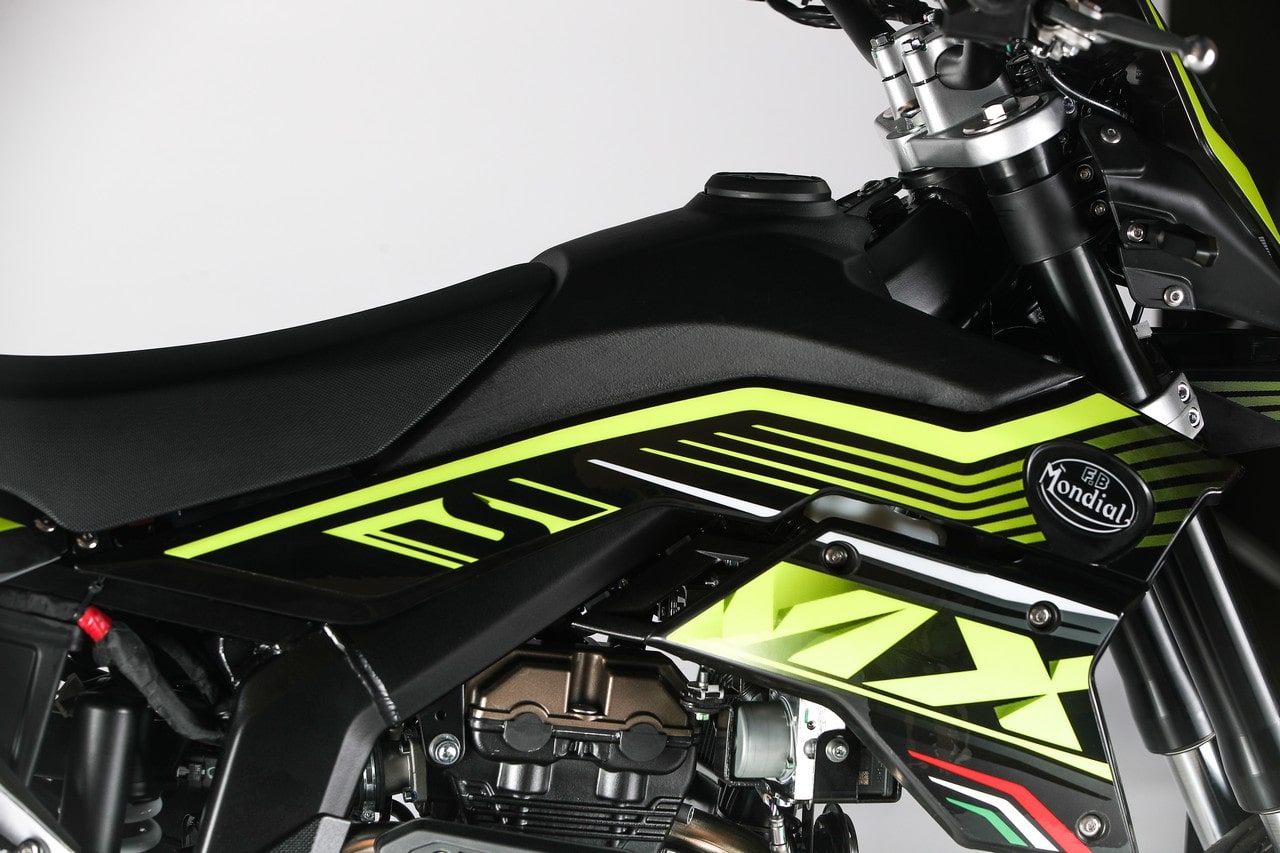

Fuel tank  6,3 L
FRAME BODY HPS 125
Lenght  2080 mm
Width 820 mm
Height 1180 mm
Wheelbase 1425 mm
Ground clearance  275 mm
Seat height    890 mm
Front suspension 41 USD hydraulyc fork, 247 mm
Rear suspension Single shock absorber (250 mm)
Dry weight     122 kg
Max load 2 persons

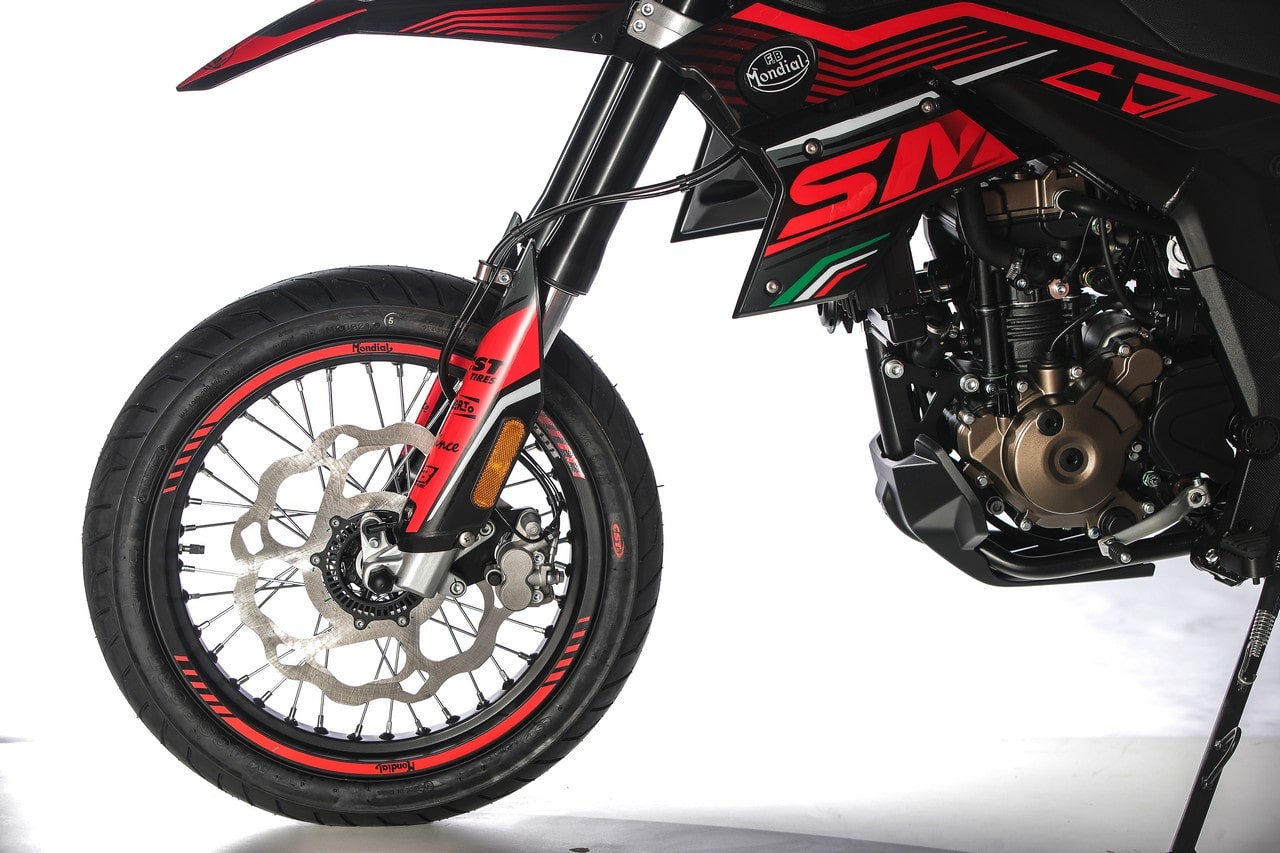

Front brake 2 pistons floating caliper (CBS)
Rear brake 1 piston floating caliper
Front wheel 2,5 x 17”
Rear wheel 3,5 x 17”
Front tyre 100/80 x 17”
Rear tyre 130/70 x 17”
Colors Red – Blue
