ENGINE

PIEGA 125

Type

Single cylinder, 4 stroke, DOHC, 4 valves

Displacement

124 cm3

Bore x Stroke

58 x 47

Compression ratio

12,6 : 1

Max Power

14,7 HP at 9750 rpm

Max Torque

10,5 Nm at 8000 rpm

Lubrication

Wet sump

Cooling

Liquid

Intake system

DELORTO EFI

Starting system

Electric starter

Transmission

6 speed

Fuel tank

9,5 L

FRAME BODY

PIEGA 125

Lenght

2025 mm

Width

710 mm

Height

1050 mm

Wheelbase

1360 mm

Ground clearance

145 mm

Seat height

850 mm

Front suspension

40 mm USD fork 97 mm

Rear suspension

Single shock absorber 120 mm

Dry weight

133 kg

Max load

2 persons

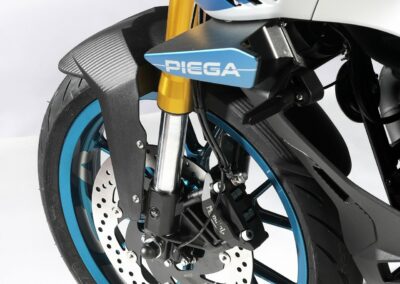

Front brake

Disc brake 280mm with 4 pistons radical caliper (ABS)

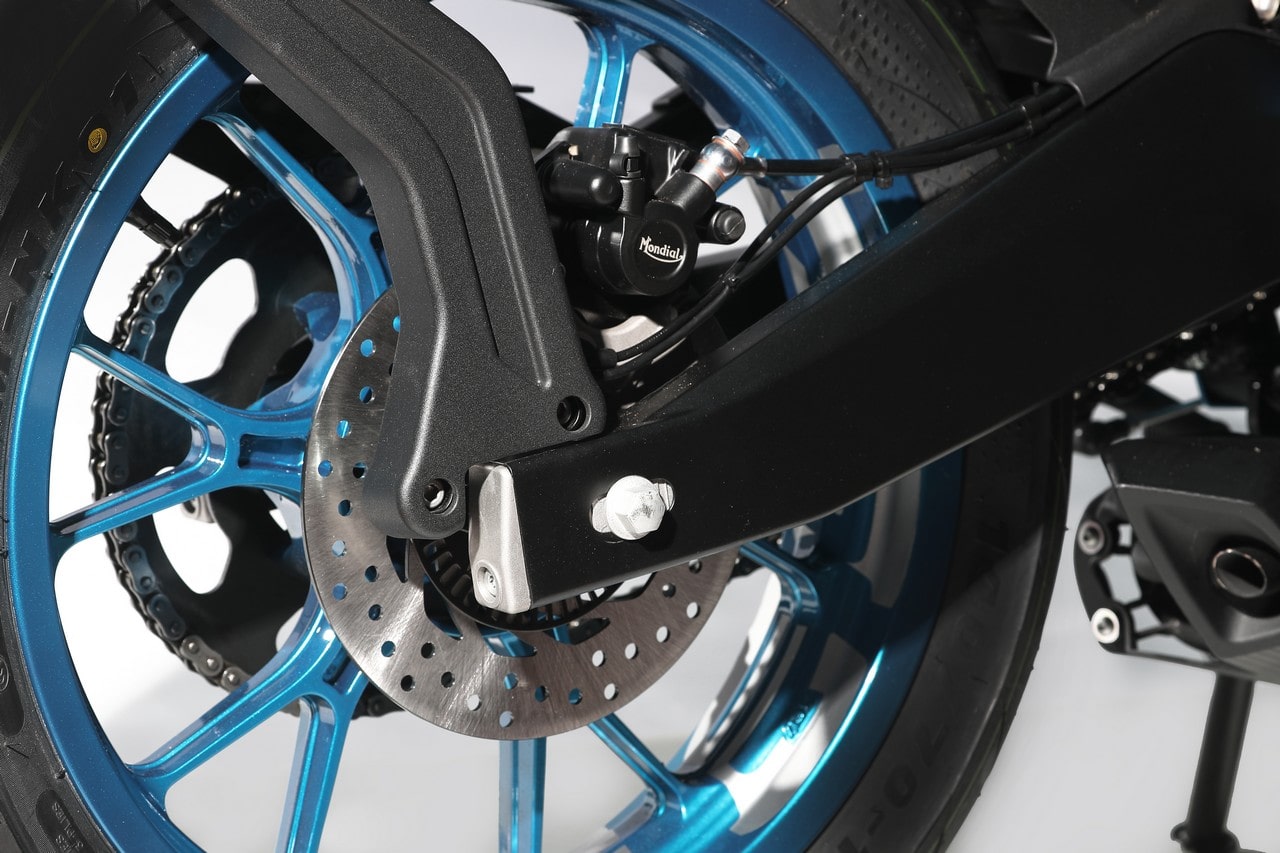

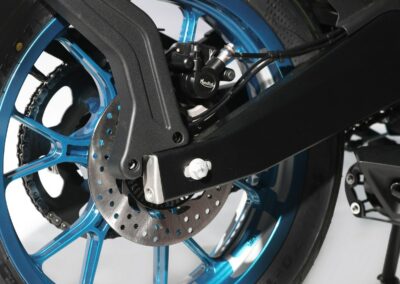

Rear brake

Disc brake 220 mm with 1 piston floating caliper (ABS)

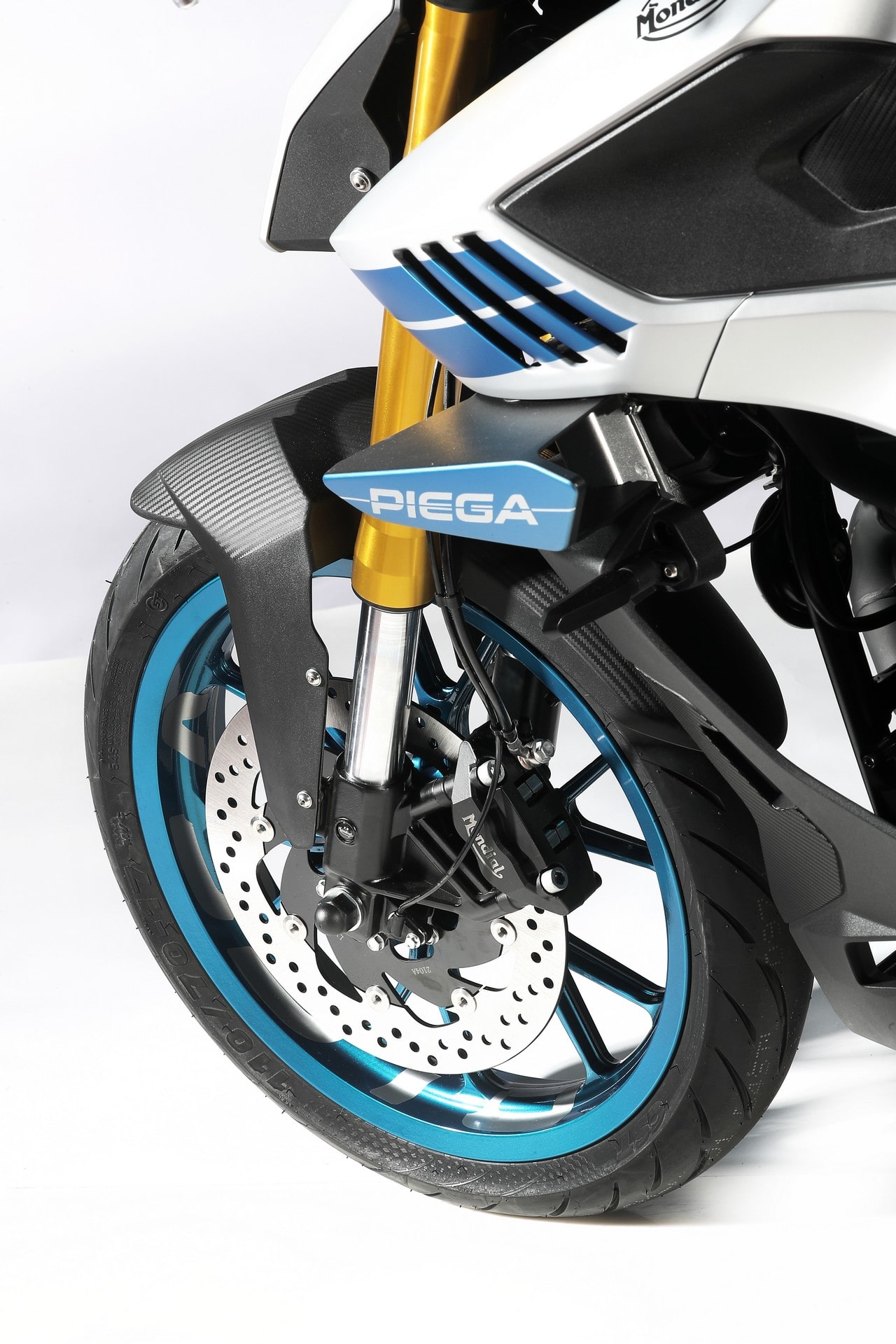

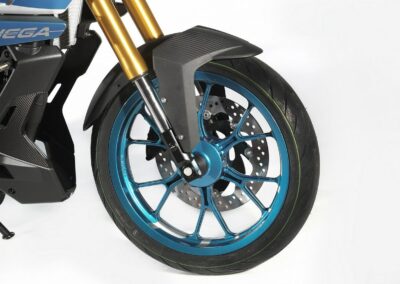

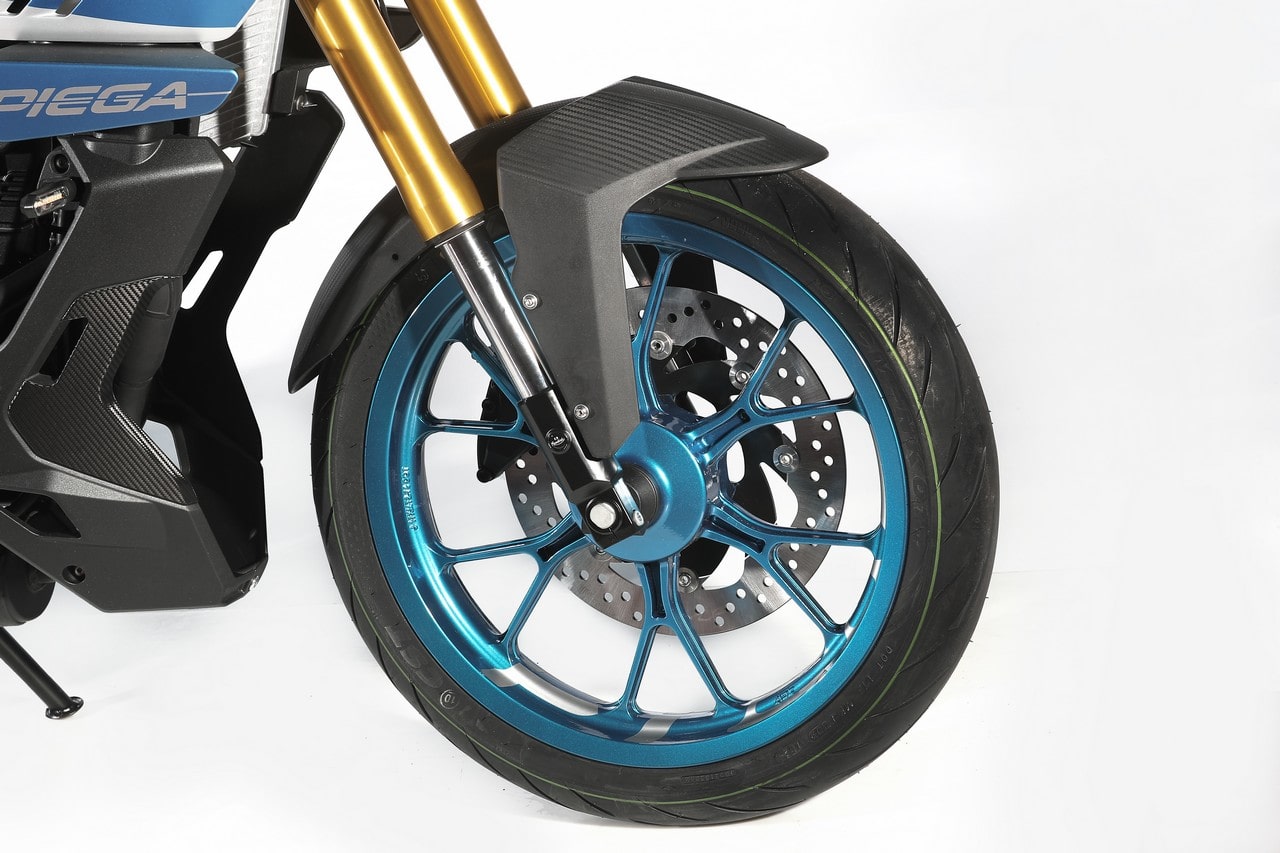

Front wheel

18”

Rear wheel

17”

Front tyre

110/90 x 18”

Rear tyre

130/80 x 17”

Colors

 Yellow / Grey / Blue
