FBMONDIAL PAGANI 1948 125 300cc

PAGANI 1948 Sport Classic 125

ENGINE PAGANI 1948 Sport Classic 125
Type Single cylinder, 4 stroke, DOHC, 4 valves
Displacement 124,2 cm3
Bore x Stroke    58 x 47
Compression ratio   12,6 : 1
Max Power 15 HP at 9750 rpm
Max Torque 12,3 Nm at 7500 rpm
Lubrication Wet sump
Cooling Liquid
Intake system EFI
Starting system  Electric starter
Transmission 6 speed
Fuel tank  9 L
FRAME BODY PAGANI 1948 Sport Classic 125
Lenght  1980 mm
Width 650 mm
Height 1050 mm
Wheelbase 1370 mm
Ground clearance  145 mm
Seat height    775 mm
Front suspension 41 USD hydraulyc fork, 90 mm

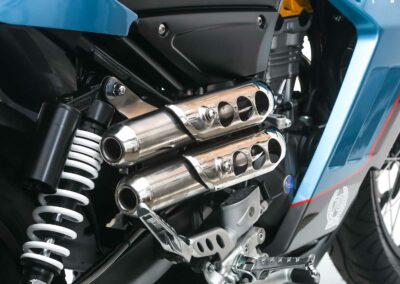

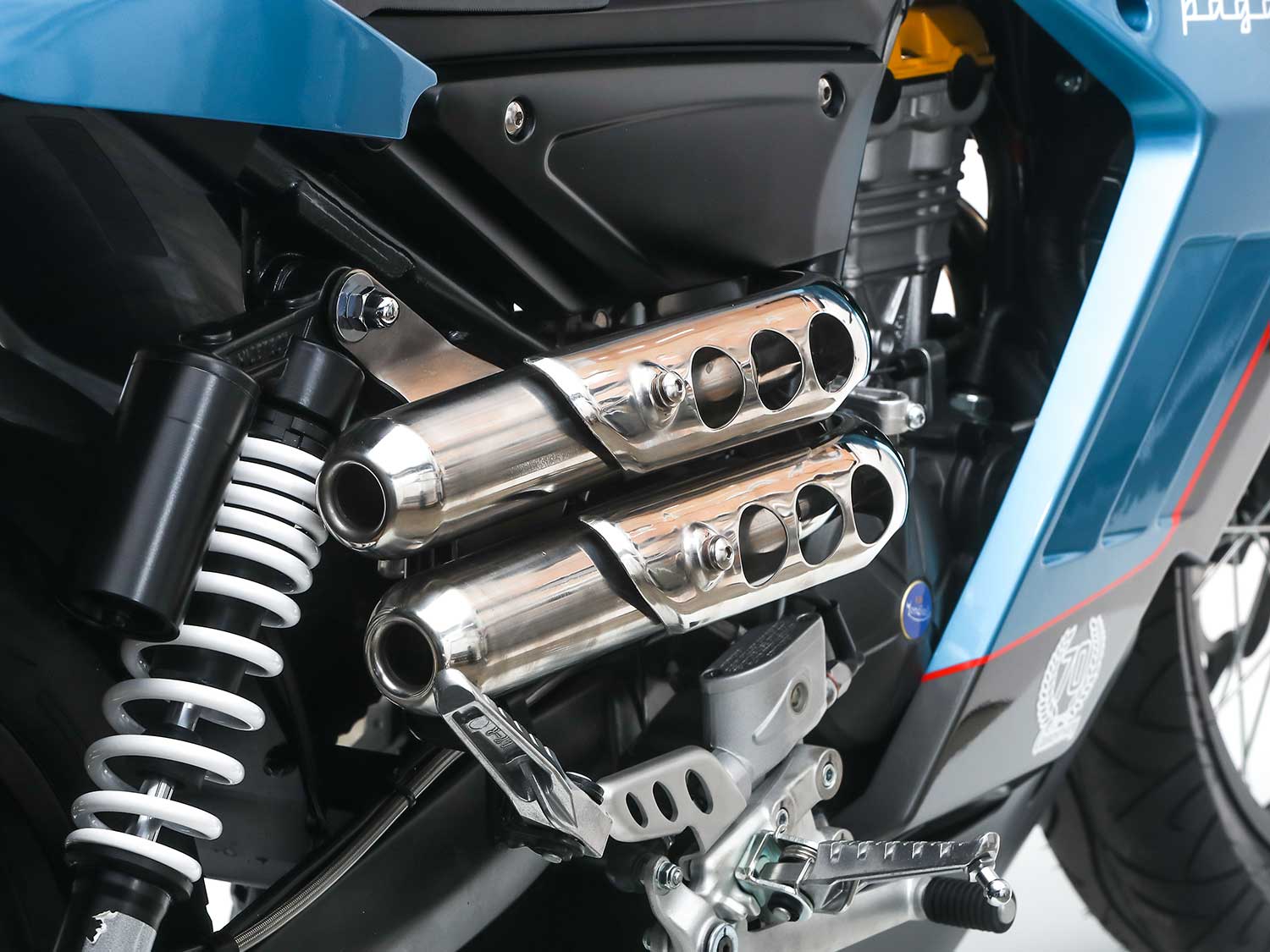

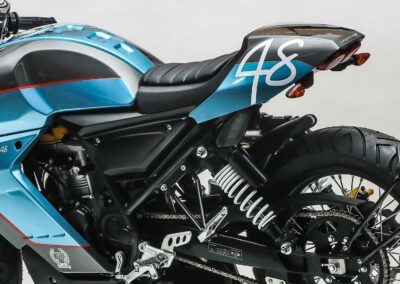

Rear suspension Double shock absorbers (120 mm)
Dry weight     130 kg
Max load 2 persons

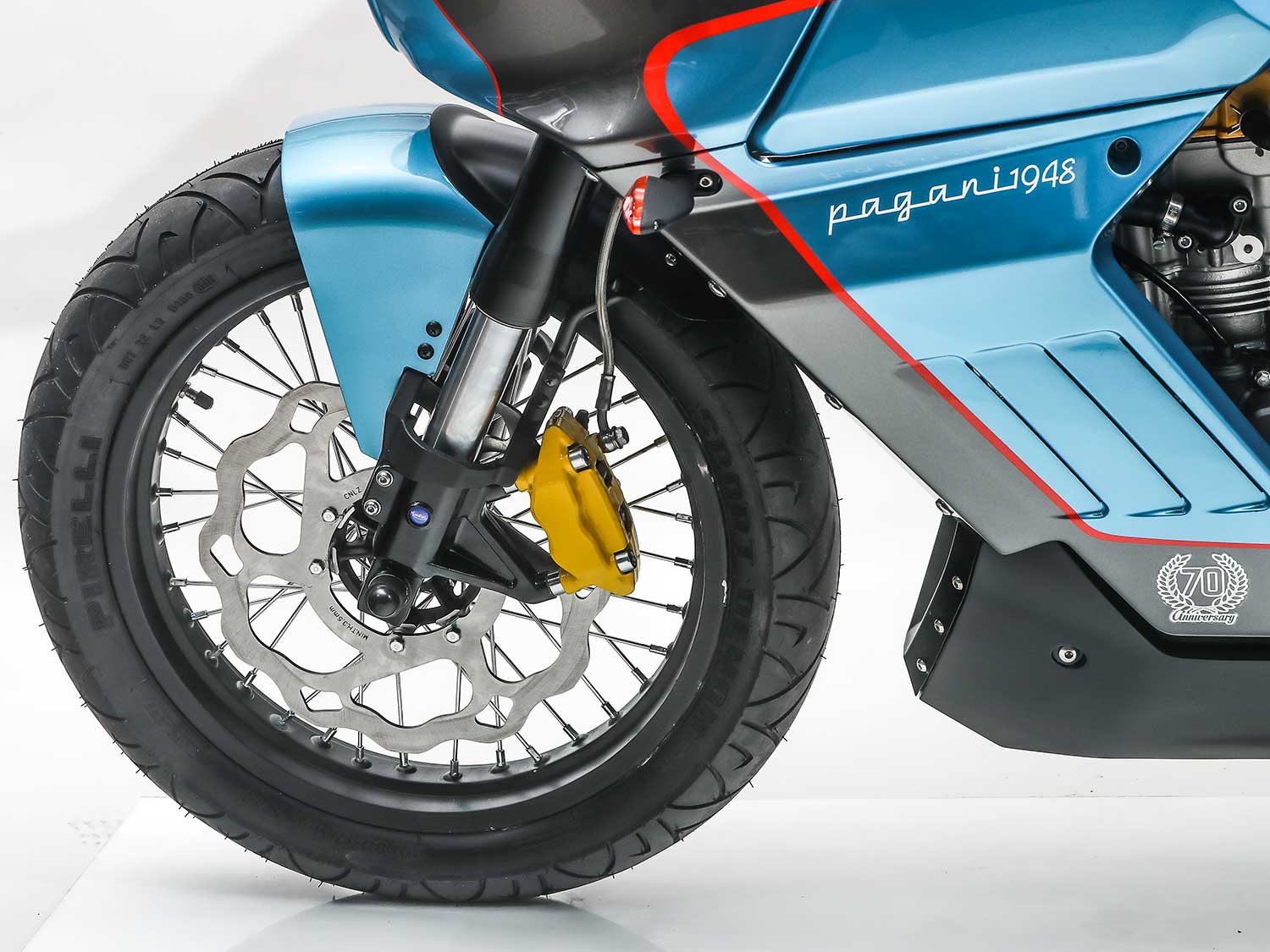

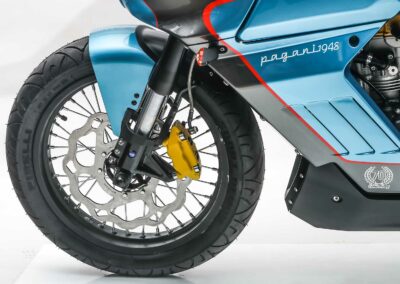

Front brake 4 pistons radial caliper (CBS)
Rear brake 1 piston floating caliper
Front wheel 2,50 x 17”
Rear wheel 3,50 x 17”
Front tyre 100/80 x 17”
Rear tyre 140/70 x 17”
Colors Blue



PAGANI 1948 Sport Classic 300

ENGINE PAGANI 1948 Sport Classic 300
Type Single cylinder, 4 stroke, SOHC, 4 valves
Displacement 249 cm3
Bore x Stroke    77 x 53,6
Compression ratio   11,5 : 1
Max Power 25 HP at 9000 rpm
Max Torque 22 Nm at 7000 rpm
Lubrication Wet sump
Cooling Liquid
Intake system EFI
Starting system  Electric starter
Transmission 6 speed
Fuel tank  9 L
FRAME BODY PAGANI 1948 Sport Classic 300
Lenght  1980 mm
Width 650 mm
Height 1050 mm
Wheelbase 1370 mm
Ground clearance  145 mm
Seat height    775 mm
Front suspension 41 USD hydraulyc fork, 90 mm
Rear suspension Double shock absorbers (120 mm)
Dry weight     135 kg
Max load 2 persons
Front brake 4 pistons radial caliper (CBS)
Rear brake 1 piston floating caliper
Front wheel 2,50 x 17”
Rear wheel 3,50 x 17”
Front tyre 100/80 x 17”
Rear tyre 140/70 x 17”
Colors Blue
